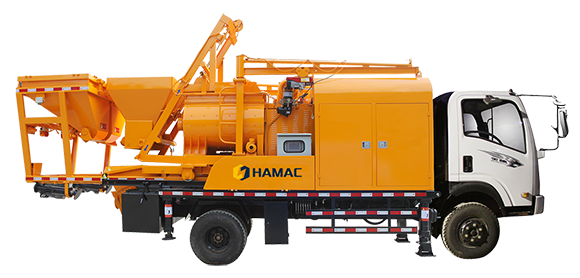

MHBT25-L2 Concrete Mixer Pump

MHBT25-L2 Concrete Mixer Pump
Type:
Electric Concrete Mixer Pump
Characteristic:
Portable Concrete Mixer And Pump
Model:
MHBT25-L2
Type: Electric Concrete Mixer Pump
Characteristic: Portable Concrete Mixer And Pump
Model: MHBT25-L2
Product characteristics

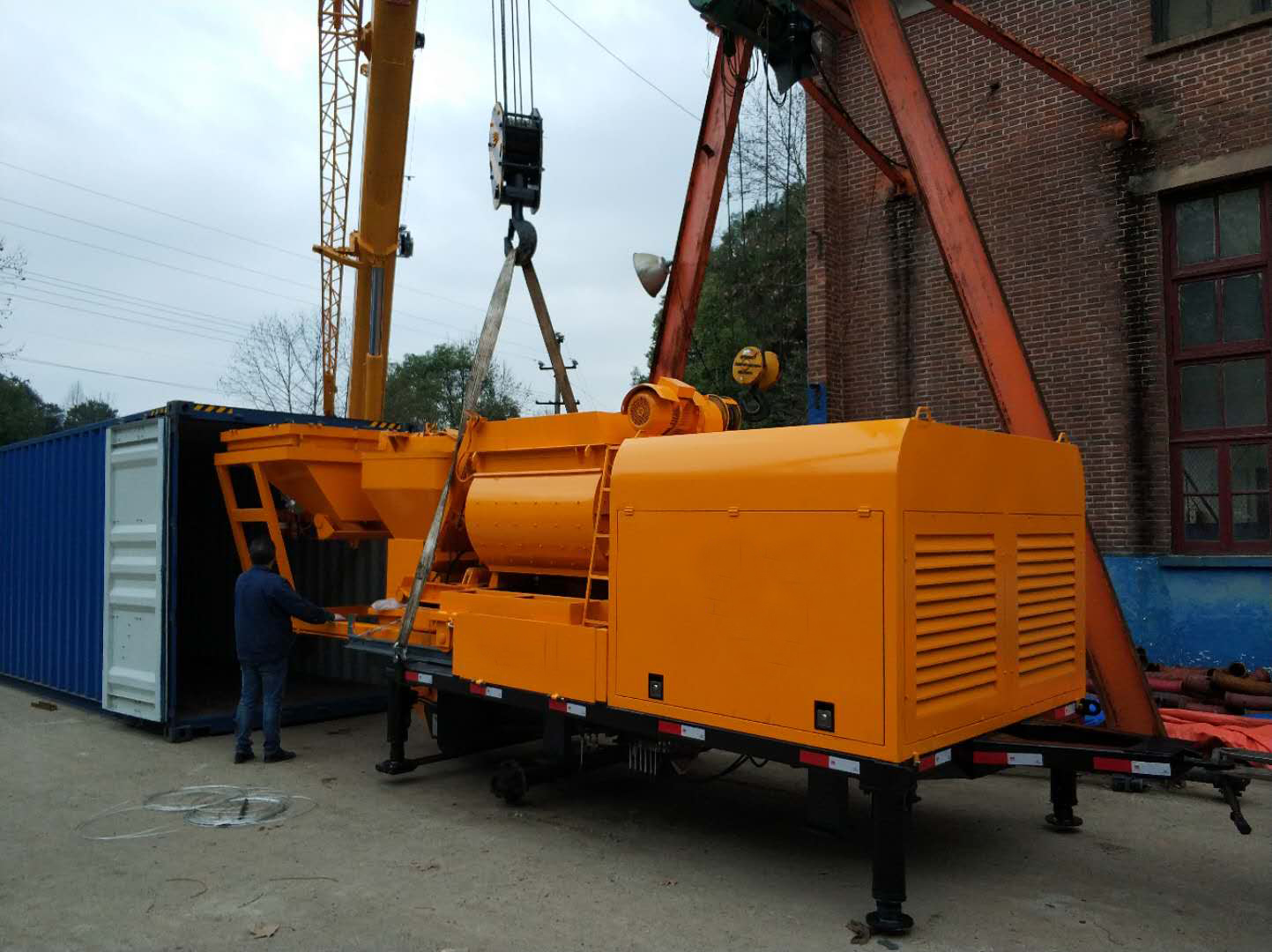

HBT25-L2 Electric Mobile Concrete Mixer Pump is a very useful machine which definitely combines the features of traditional concrete pump and concrete mixer together. It can reach the function of feeding, blending, mixing and pumping First the pump gets into the mixing system, after that it enters into the pumping system. And then it is pumped to the construction spots with the help of conveying pipes. Thanks to its fully automated construction operating system, the whole process is finished in a very short time. As one of the most popular concrete conveying equipment, more and more customers become interested in it.


1. Equipped with diesel generator, Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Equipped with aggregate batching machine, 20 recipes of concrete can be produced;
4. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
5.PLC controlled, work stable, working life longer;
6. Equipped with SINOTRUCKCDW chassis, it can be moved conveniently in different working areas.



Model parameters
Model MHBT25-L2 Concrete Mixer Pump
Product name Trailer batch pump
Pumping system
ITEM SPEC ITEM SPEC
Generator 100KW Main motor 37KW
Main pump KAWASAKI K3V112 Aggregate size Pebble: 40mm
Crushed stone: 30mm
Deliver cylinder
Diameter*stroke
Φ200*1000 Main oil cylinder
Rod*stroke
Φ100*φ70*1000mm
Distribution valve S valve Outlet diameter Φ200
Hydraulic oil tank 300L Delivery pipe Φ125
Slumps 12-23cm Max.theo. Pumping output 40m3/h
Mixing system
Mixer JS500 Mix motor 18.5KW
Feeing hopper x filling height 800L x 1200mm Hoist motor 5.5KW
Discharging
capacity
500L Water pump 0.75KW
Max. Theoretical mixing output 25m3/h Vibrator WAM 0.75kW*2
Batching system
Hopper capacity 1.8m3*2 Compressor 3 bar
Wireless control Included Sliding rail Included
Chassis
Chassis brand CDW SINOTRUCK Wheel base 3650
Emission standard EURO V Max. speed 80kM/H
Overall Dimension
Operating size 8900*2210*3950mm Total weight 8000KG
Transport size 6900*2210*3100mm Hydraulic leg 6 PCS
