Type: | Diesel Concrete Mixer Pump |
Characteristic: | Diesel Engine |
Model: | DHBT 15 |

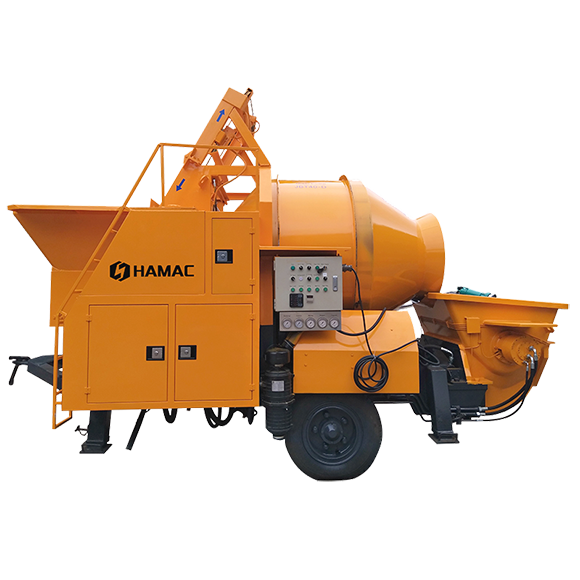

Diesel Engine Driven Concrete Mixer with Pump | ||||
Parts Name/Parameters | Parts Brand Name | Quantity | Specification | |
Power | Diesel Engine | WEICHAI | 1 pc | 72 KW |
Rated Rotation | 1800r/m | |||
Mixing System | Mixer | Domestic | 1 set | Drum Mixer,JZM450 |
Power | By Hydraulic from Engine | |||
Submersible Pump | 1 pc | hydraulic water pump | ||
Max. Theoretical Mixing Output | / | / | 25m³/h | |
Pumping System | Main Oil Pump | Kawasaki | 1pc | K3V112 |
Double Gear Pump | Domestic | 1set | 25&16 | |
Valves | Japanese | 4sets | overflow and directional valves | |
Main Oil Cylinder | Domestic | 2pcs | Φ100×Φ70×800mm | |
Delivery Cylinder | Domestic | 2pcs | Φ200×800mm | |
S Valve | Domestic | 1pc | Φ200mm | |
Cutting Ring | alloy | 1pc | Φ200mm | |
Glass Wear Plate | alloy | 1pc | Φ200mm | |
Max. Theoretical Pumping Output | / | / | 40m³/h | |
Hydraulic System Type | / | / | Open | |
Hopper Capacity × Filling Height | / | / | 600/1050(L/mm) | |
Max. Aggregate Size | / | / |
Pebble:40 Crushed Stone:30 mm |
|
Outlet Pressure | / | / | 8Mpa | |
Oil Tank Capacity | / | / | 200L | |
Rated Speed | / | / | 1480Rpm | |
Slumps | / | / | 12-23cm | |
Tyre Size | / | / | 700R16 | |
Towing Speed | / | / | Max. 8km/h | |
Overall | Total Weight | / | / | 5300kg |
Machine Size(L*W*H) | / | / | 4960*2100*2600 mm | |
Delivery height/horizontal distance | / | / | 70/300m | |
Packing | / | / | 1* 40HQ |
