Concrete Mixer With Pump - - Hamac Machinery

HBT25-L2 Concrete Mixer Pump

Type:

Electric Concrete Mixer Pump

Characteristic:

Electric power

Model:

HBT25-L2

Type:	Electric Concrete Mixer Pump
Characteristic:	Electric power
Model:	HBT25-L2

Product characteristics

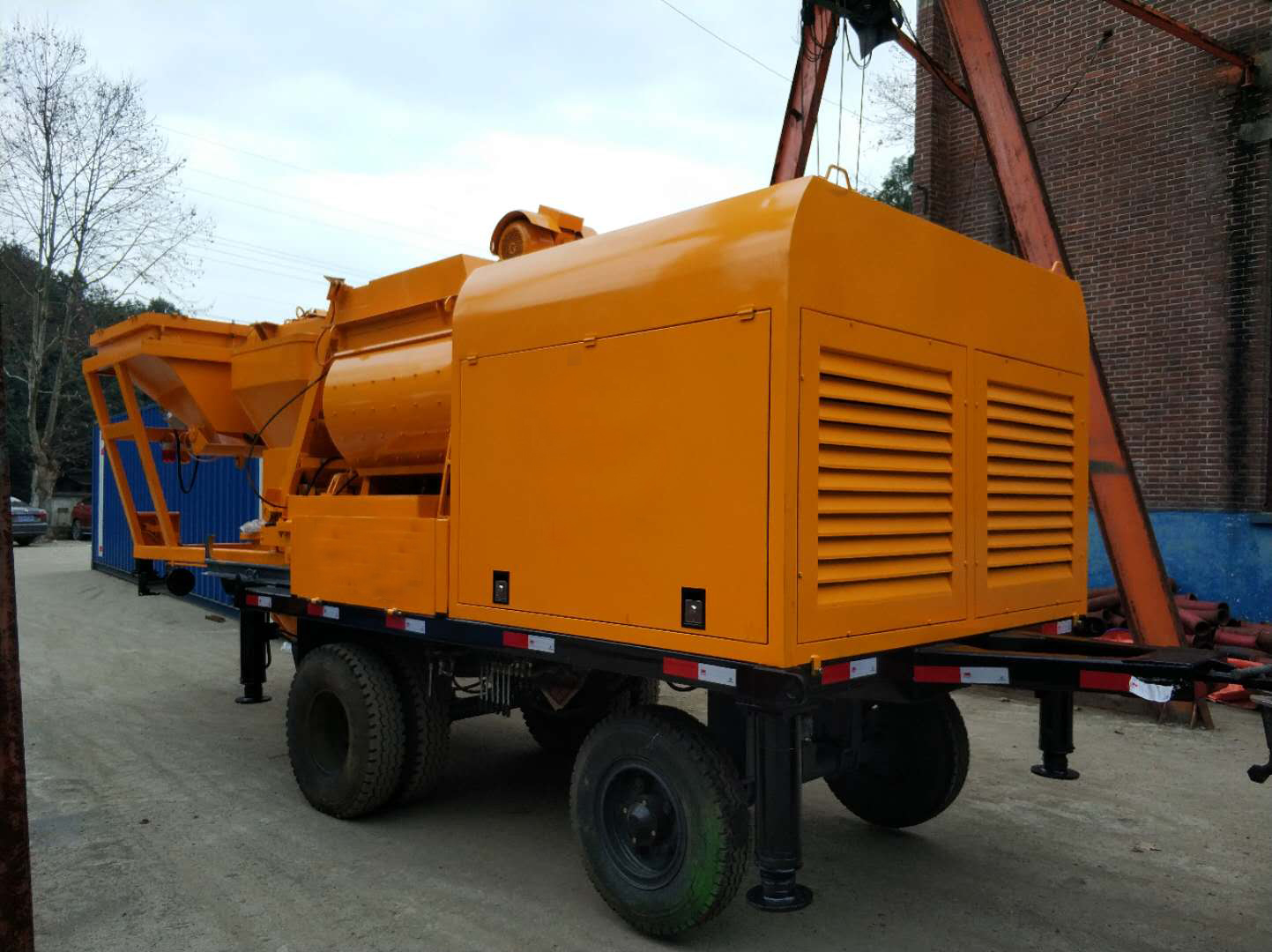

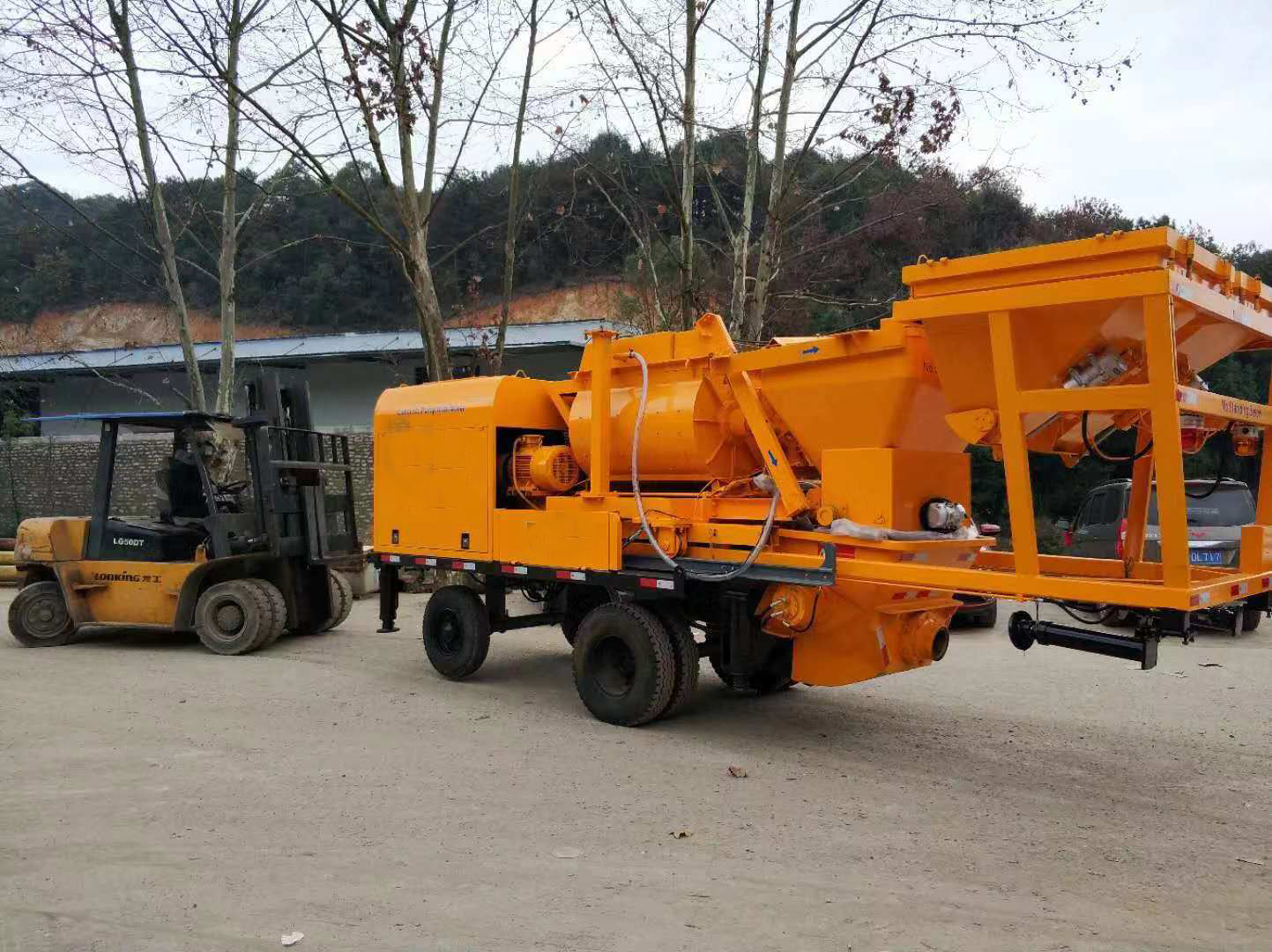

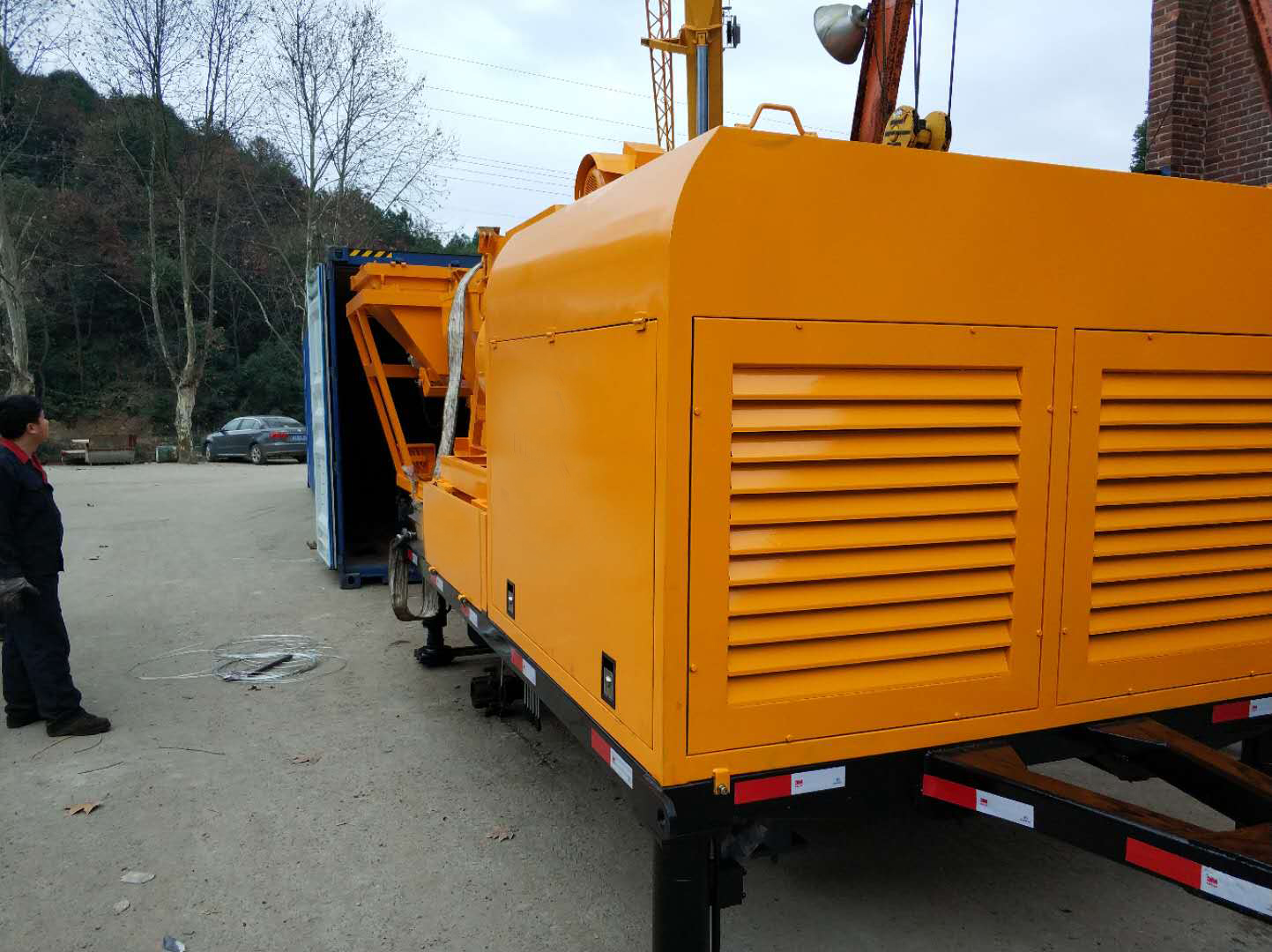

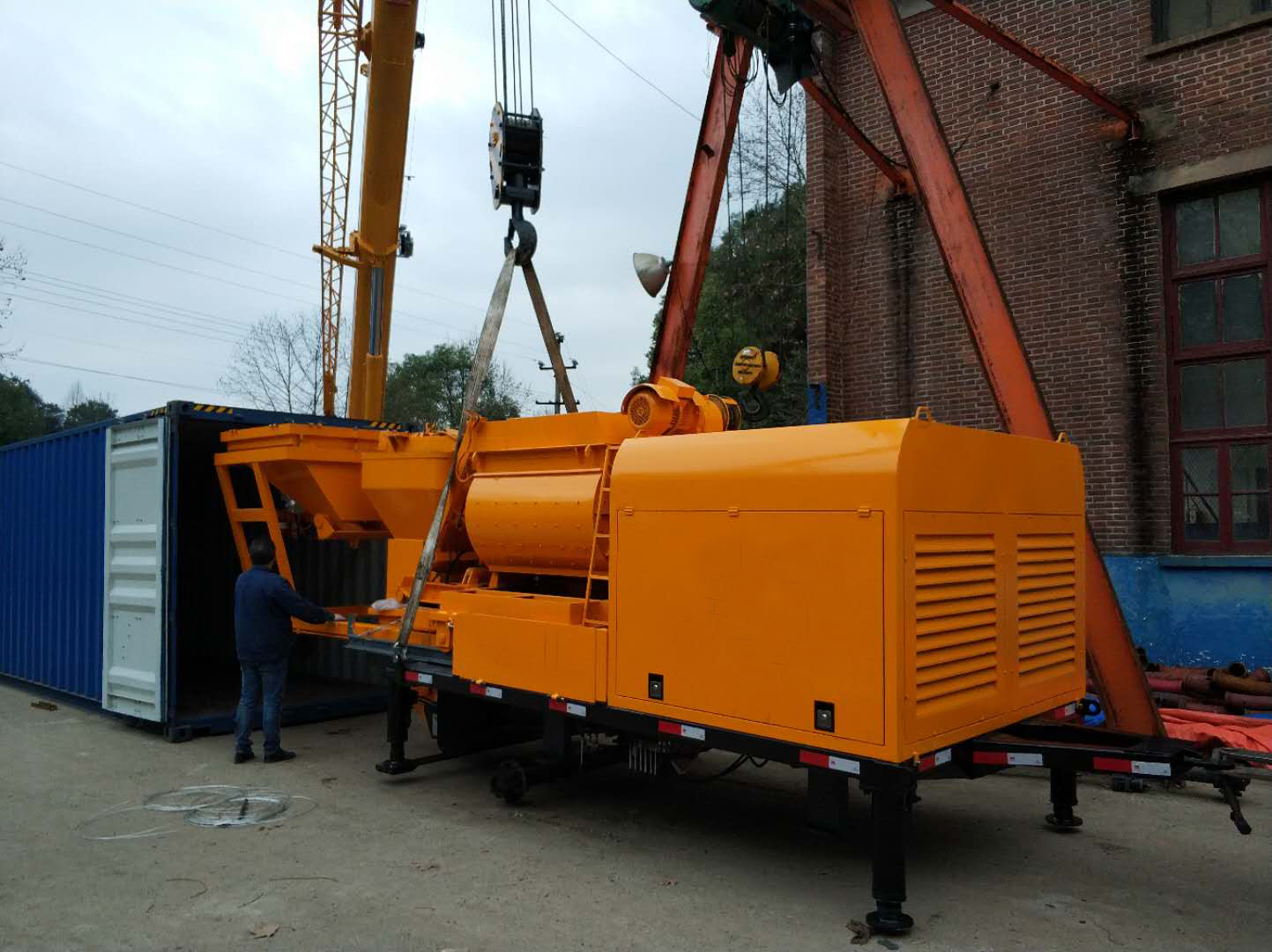

HBT25-L2 Electric Concrete Mixer Pump is a very useful machine which definitely combines the features of traditional concrete pump and concrete mixer together. It can reach the function of feeding, blending, mixing and pumping First the pump gets into the mixing system, after that it enters into the pumping system. And then it is pumped to the construction spots with the help of conveying pipes. Thanks to its fully automated construction operating system, the whole process is finished in a very short time. As one of the most popular concrete conveying equipment, more and more customers become interested in it.

1. Equipped with diesel generator, Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. Equipped with aggregate batching machine, 20 recipes of concrete can be produced;
4. Forced type concrete mixer, compared with drum type concrete mixer, concrete quality is better;
5.PLC controlled, work stable, working life longer.

Model parameters

Model		HBT25-L2 Concrete Mixer Pump
Product name		Trailer batch pump
Pumping system
ITEM	SPEC	ITEM	SPEC
Generator	100KW	Main motor	37KW
Main pump	KAWASAKI K3V112	Aggregate size	Pebble: 40mm Crushed stone: 30mm
Deliver cylinder Diameter*stroke	Φ200*1000	Main oil cylinder Rod*stroke	Φ100φ701000mm
Distribution valve	S valve	Outlet diameter	Φ200
Hydraulic oil tank	300L	Delivery pipe	Φ125
Slumps	12-23cm	Max.theo. Pumping output	40m3/h
Mixing system
Mixer	JS500	Mix motor	18.5KW
Feeing hopper x filling height	800L x 1200mm	Hoist motor	5.5KW
Discharging capacity	500L	Water pump	0.75KW
Max. Theoretical mixing output	25m3/h	Vibrator	WAM 0.75kW*2
Batching system
Hopper capacity	1.8m3*2	Compressor	3 bar
Wireless control	Included	Sliding rail	Included
Overall Dimension
Operating size	890022103100mm	Total weight	8000KG
Transport size	690022103100mm	Hydraulic leg	6 PCS
